Dibblee
5000 Lbs Tiedowns (Box of 8)
5000 Lbs Tiedowns (Box of 8)
Prix habituel
$116.68
Prix habituel
Prix promotionnel
$116.68
Prix unitaire
par
Impossible de charger la disponibilité du service de retrait
5,000 lb Tiedowns — Box of 8 | CF Canada CGU-1/B

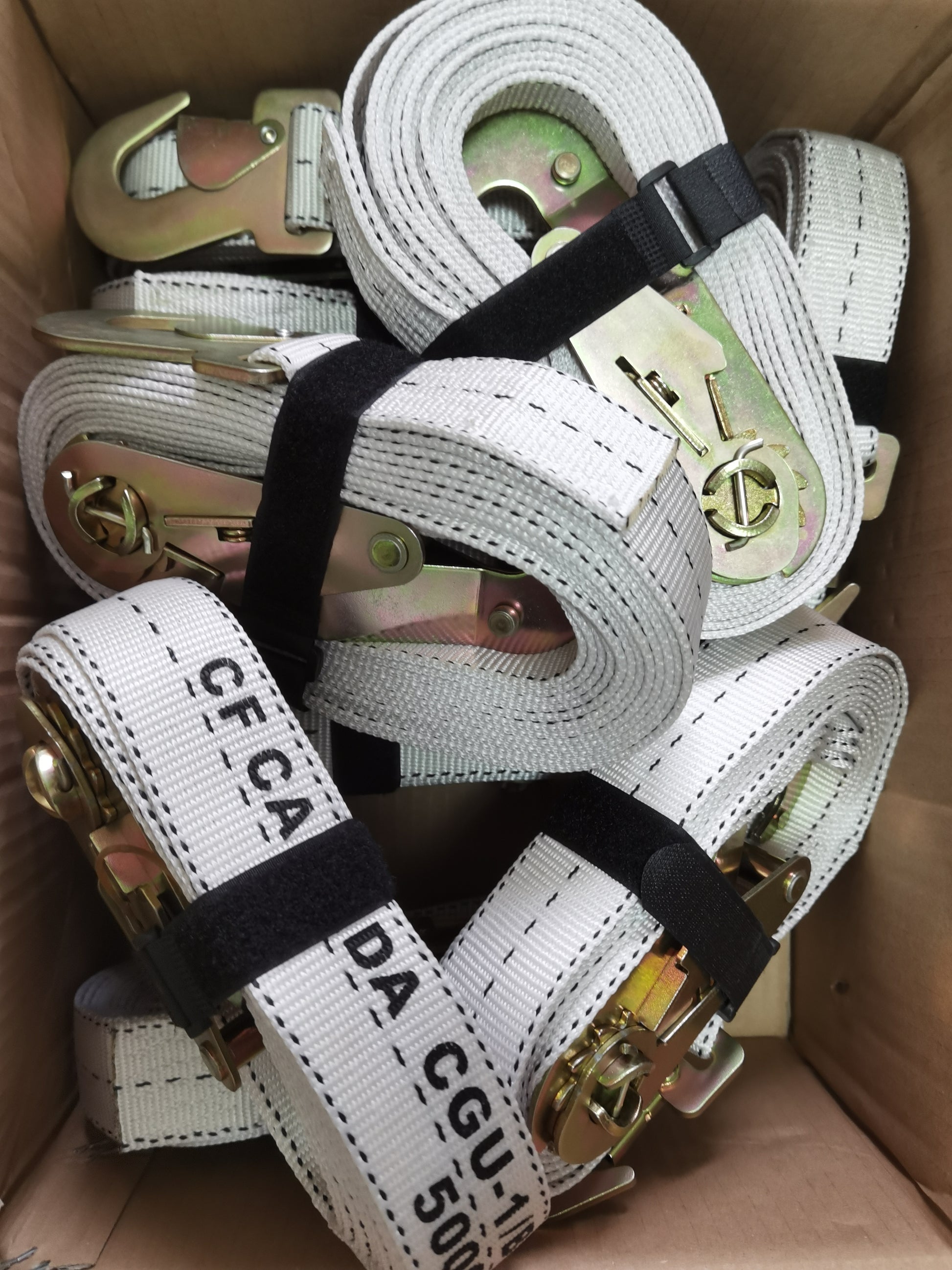

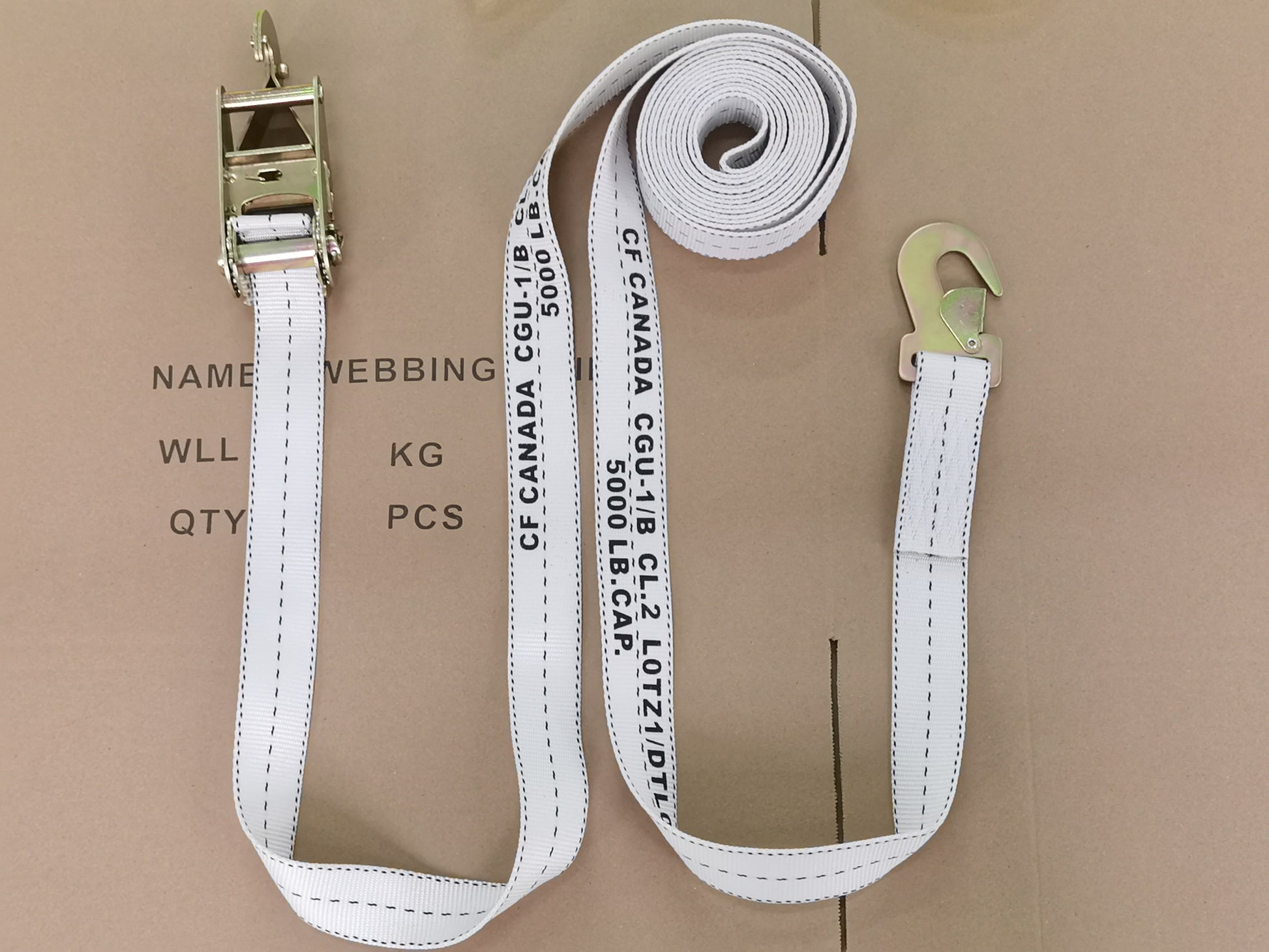

Military-specification cargo tiedowns to CF Canada standard CGU-1/B, rated at 5,000 lbs. Supplied in a box of 8 straps, each 18 feet long. CAGE code L0TZ1.
Specifications
| Rated Load | 5,000 lbs (2,268 kg) |
|---|---|
| Length | 18 feet |
| Quantity per Box | 8 straps |
| Specification | CF Canada CGU-1/B |
| CAGE Code | L0TZ1 |
| Country of Origin | Canada |
Applications
- Military cargo securing and restraint
- Vehicle tiedown on transport aircraft and vessels
- Heavy equipment restraint
- NATO and Canadian Forces logistics operations
Instructions
- Attach hooks to approved, rated tiedown points.
- Thread strap through the ratchet mechanism.
- Tighten ratchet until the strap is taut and cargo is secured.
- Verify all connections before transit.
- Inspect webbing for damage before each use.
Safety Warnings
- Do not exceed the 5,000 lb rated capacity.
- Inspect webbing for cuts, fraying, or UV damage before each use.
- Do not use damaged straps.
- Attach only to rated tiedown anchor points.
Dibblee Industries Ltd.
Technical Data Sheet
Certification
CF Canada Military Specification
Issuing Authority
CF Canada (Canadian Forces)
Grade
CGU-1/B
⚠ Safety Warning
⚠️ Do not exceed 5,000 lb rated capacity • Inspect webbing for cuts, fraying, or UV damage before use • Do not use damaged straps • Ensure proper attachment to rated tiedown points only • 18 feet length — verify adequate strap length for application
Technical Specifications
| Parameter | Value |
|---|---|
| Chain Diameter | N/A |
| Breaking Load | 5,000 lbs (2,268 kg) |
| Material | Webbing with steel hooks |
| Manufacturer | CF Canada |
| Country of Origin | Canada |
Government & Procurement Identifiers
NCAGE Code
L0TZ1
Applications
- Military cargo securing
- Vehicle tiedown on transport aircraft and vessels
- Heavy equipment restraint
- NATO/military logistics operations
Standards Compliance
- CF Canada military specification CGU-1/B
Ordering Information
- Minimum order quantity: 1
- Lead time: Contact for current stock
Installation Instructions
1. Attach hooks to approved tiedown points
2. Thread strap through ratchet mechanism
3. Tighten ratchet until strap is taut and cargo is secured
4. Verify all connections before transit
5. Inspect strap for fraying or damage before each use
