Jaw and Jaw Bolt Type Turnbuckle

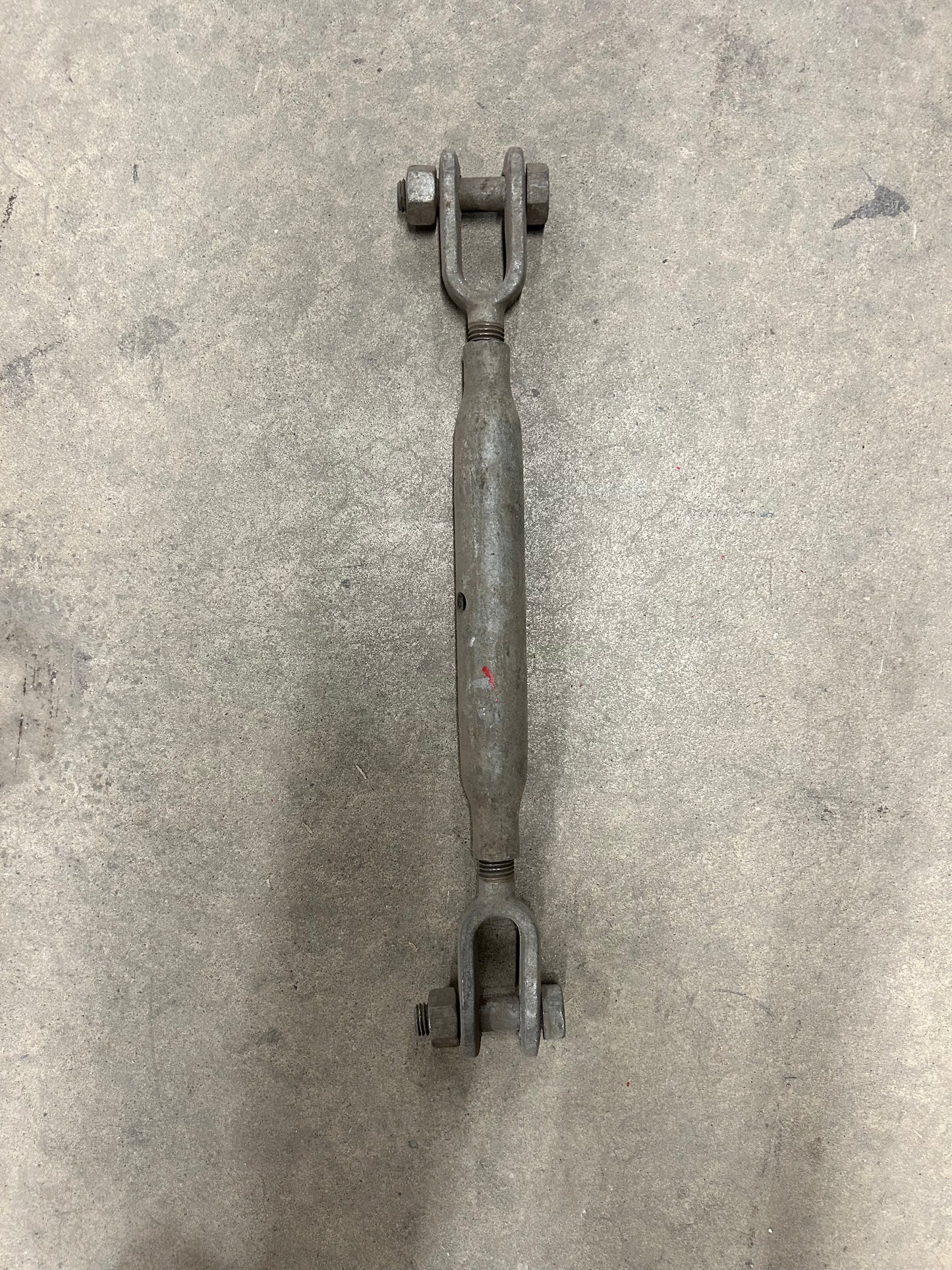

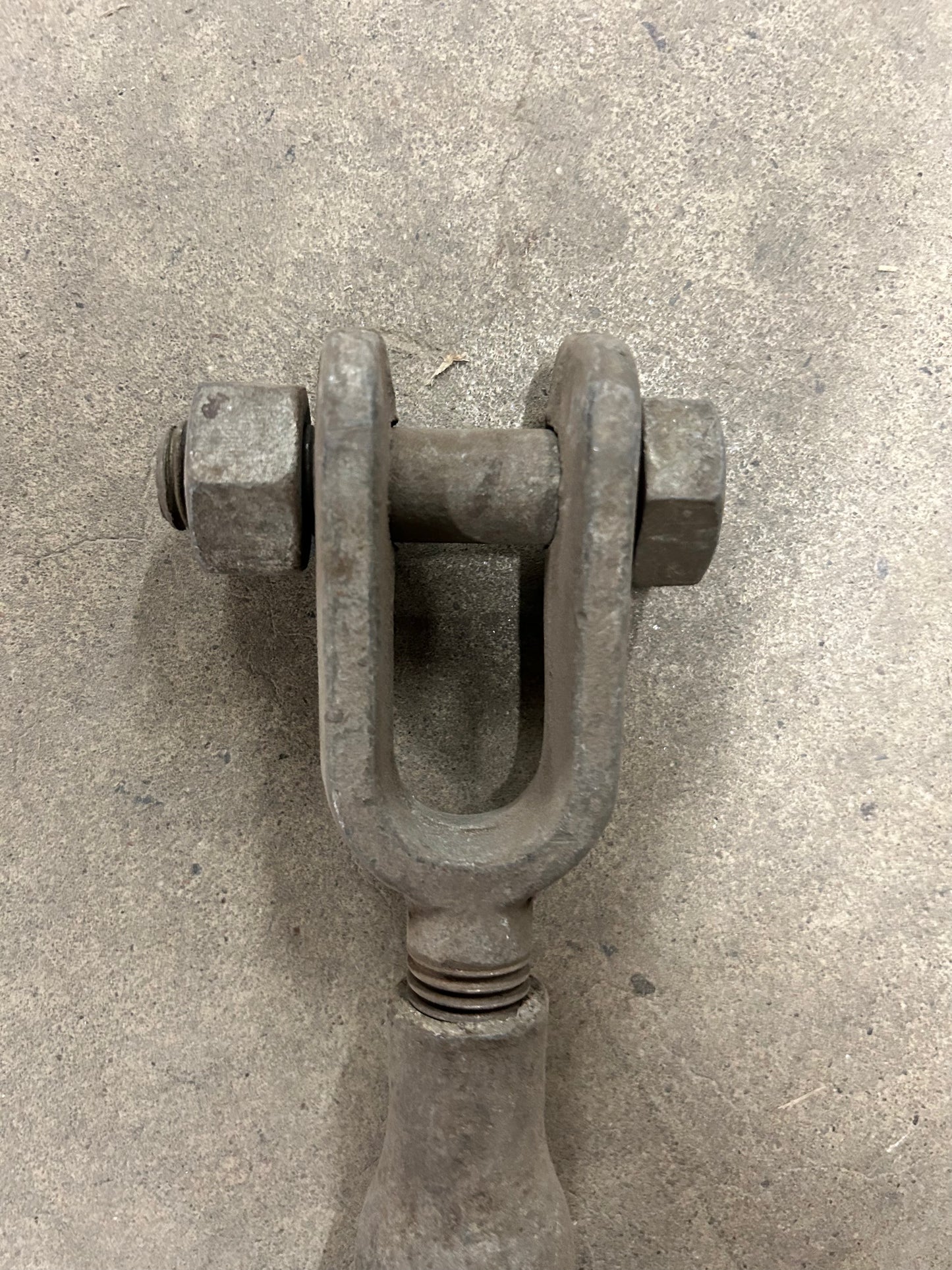

Jaw and Jaw Bolt Type Turnbuckle — 7/8" × 12"

Forged steel jaw-and-jaw bolt type turnbuckle for tensioning wire rope, cable, and rod assemblies in marine, rigging, and military applications. Hot-dip galvanized for corrosion resistance.

Specifications

Applications

• Tensioning wire rope, cable, and rod assemblies
• Marine deck rigging and standing rigging
• Structural tensioning applications
• Military and industrial rigging

Instructions

1. Thread jaw ends onto attachment points and secure jaw pins.
2. Rotate the body to adjust tension (clockwise tightens).
3. At working tension, lock the body using safety wire or a lock nut to prevent back-off.
4. Inspect threads for wear or cross-threading before use.

Safety Warnings

• Do not over-torque — verify rated working load for your application.
• Always lock the body at working tension to prevent unintended loosening.
• Inspect jaw pins and threads for wear or damage before each use.
• Replace if threads are damaged or jaw pins show significant wear.
