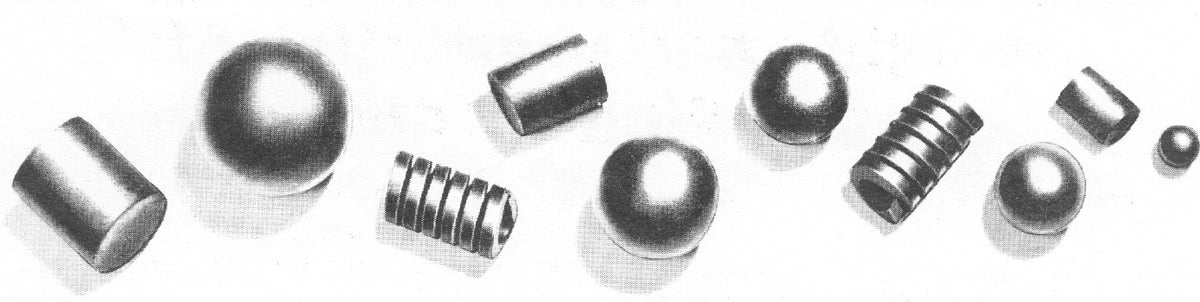

Cylpebs & Slugoids — Cylindrical Grinding Media
Cylpebs & Slugoids — Cylindrical Grinding Media
Quoted on request. Price depends on the steel market and freight to your port. Tell us your port and specification and we will quote it delivered.
Contact Us For A QuoteCylpebs & Slugoids — Cylindrical Grinding Media
Cylindrical grinding media in special carbon/manganese steel, heat treated to a uniform 500 Brinell through the section, from 12 x 12 mm to 32 x 32 mm (1/2 in to 1-1/4 in).
Cylpebs or slugoids?
| Slugoids | Length equal to diameter. Being equi-dimensional they tumble with the action of a ball while keeping the larger contact area of a cylinder — introduced as the alternative to steel balls in the smaller sizes. |
|---|---|
| Cylpebs | The original cylindrical media, 12 mm to 30 mm (1/2 in to 1-1/4 in) diameter, made to any required length. Specify the length you want and we will quote it. |
Why cylindrical media
For the same nominal dimension a cylinder and a ball stand in a ratio of 3 to 2 in both surface and volume, so the exposed surface per tonne of charge is the same for the two. What differs is the contact: a cylinder presents line and face contact rather than a point, which is why cylpebs are chosen for fine grinding and for finishing duties where a ball charge leaves the product coarse.
Sizes, weights and charge data
| Size | Weight each | Pieces per tonne | Surface area each |
|---|---|---|---|
| 12 x 12 mm (1/2 in) | 11 g (0.024 lb) | 93,863 | 6.8 cm² |
| 13 x 13 mm | 14 g (0.03 lb) | 73,826 | 8 cm² |
| 15 x 15 mm | 21 g (0.046 lb) | 48,058 | 10.6 cm² |
| 16 x 16 mm (5/8 in) | 25 g (0.056 lb) | 39,599 | 12.1 cm² |
| 17 x 17 mm | 30 g (0.067 lb) | 33,014 | 13.6 cm² |
| 19 x 19 mm (3/4 in) | 42 g (0.093 lb) | 23,647 | 17 cm² |
| 20 x 20 mm | 49 g (0.109 lb) | 20,275 | 18.8 cm² |
| 22 x 22 mm (7/8 in) | 66 g (0.145 lb) | 15,233 | 22.8 cm² |
| 25 x 25 mm (1 in) | 96 g (0.212 lb) | 10,381 | 29.5 cm² |
| 30 x 30 mm | 167 g (0.367 lb) | 6,007 | 42.4 cm² |
| 32 x 32 mm (1-1/4 in) | 202 g (0.445 lb) | 4,950 | 48.3 cm² |
Figures are calculated from nominal dimensions at the stated density and agree with the published mill tables to within rounding. They size a mill charge; they are not a certificate. Hardness is verified per ISO 6508 (Rockwell C) or ISO 6506 (Brinell) on request.
Other diameters and non-equal lengths are made to order — cylpebs are cut to the length the mill needs. Ask and we will quote your dimension.
Dibblee Industries Ltd.
Technical Data Sheet
Technical Specifications
| Parameter | Value |
|---|---|
| Material | Special carbon/manganese steel, heat treated |
