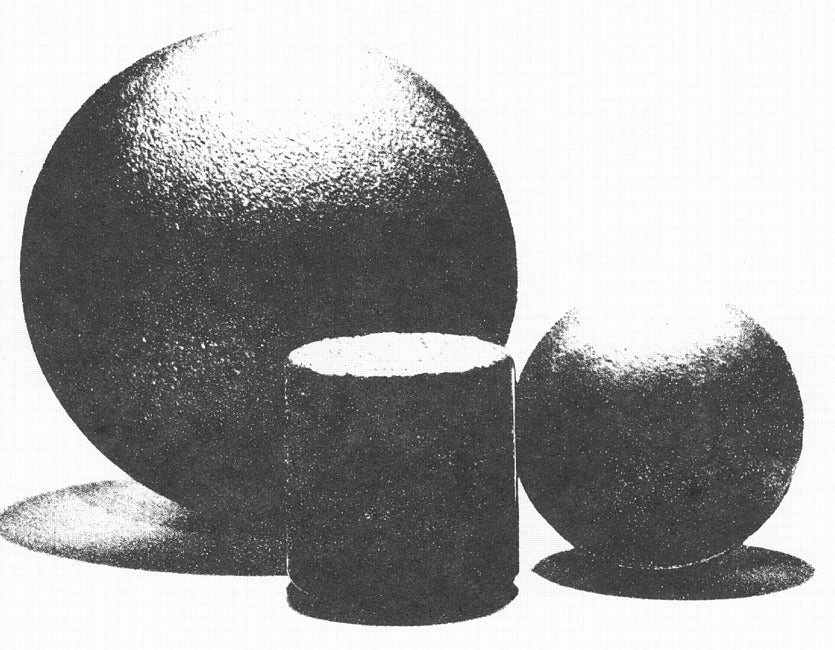

High Chromium Cast Grinding Balls
High Chromium Cast Grinding Balls
Quoted on request. Price depends on the steel market and freight to your port. Tell us your port and specification and we will quote it delivered.
Contact Us For A QuoteHigh Chromium Cast Grinding Balls
Chromium alloy white cast iron grinding media, 17 mm to 125 mm (5/8 in to 5 in). The chromium carbides give wear life that carbon steel cannot reach in abrasive ore, which is where the higher first cost is repaid.
Hardness
| Balls 60 mm (2-1/2 in) and above | Rockwell C 60 |
|---|---|
| Balls below 60 mm | Rockwell C 63 |
| Brinell equivalent | approx. 650/700 |
| Through section | Hardness is uniform throughout the mass, not a case |
Above roughly 650 BHN only the Rockwell C test is valid — the Brinell indenter ball deforms against metal this hard and reads false. A Brinell figure quoted at this hardness is an estimate converted from Rockwell, not a measurement.
Chromium content
The common grade carries 12% chromium; higher chromium grades are available where the duty is more abrasive or more corrosive. Material sits in the ASTM A532 abrasion-resistant cast iron family (12–28% Cr), equivalent to GB/T 17445.
Sizes, weights and charge data
| Diameter | Weight each | Pieces per tonne | Surface area each |
|---|---|---|---|
| 17 mm (5/8 in) | 20 g (0.043 lb) | 51,149 | 9.1 cm² |
| 20 mm (3/4 in) | 32 g (0.07 lb) | 31,412 | 12.6 cm² |
| 23 mm (7/8 in) | 48 g (0.107 lb) | 20,654 | 16.6 cm² |
| 25 mm (1 in) | 62 g (0.137 lb) | 16,083 | 19.6 cm² |
| 30 mm (1-1/4 in) | 107 g (0.237 lb) | 9,307 | 28.3 cm² |
| 40 mm (1-1/2 in) | 255 g (0.562 lb) | 3,927 | 50.3 cm² |
| 50 mm (2 in) | 497 g (1.097 lb) | 2,010 | 78.5 cm² |
| 60 mm (2-1/2 in) | 860 g (1.89 lb) | 1,163 | 113.1 cm² |
| 70 mm (2-3/4 in) | 1.36 kg (3.01 lb) | 733 | 153.9 cm² |
| 80 mm (3-1/8 in) | 2.04 kg (4.49 lb) | 491 | 201.1 cm² |
| 90 mm (3-1/2 in) | 2.9 kg (6.4 lb) | 345 | 254.5 cm² |
| 100 mm (4 in) | 3.98 kg (8.77 lb) | 251 | 314.2 cm² |
| 110 mm (4-1/2 in) | 5.3 kg (11.68 lb) | 189 | 380.1 cm² |
| 125 mm (5 in) | 7.77 kg (17.13 lb) | 129 | 490.9 cm² |
Figures are calculated from nominal dimensions at the stated density and agree with the published mill tables to within rounding. They size a mill charge; they are not a certificate. Hardness is verified per ISO 6508 (Rockwell C) or ISO 6506 (Brinell) on request.
Special compositions
Austenitic media can be supplied where the charge must stay non-magnetic or resist corrosion as well as wear:
| Austenitic manganese | 12/14% Mn and 16/18% Mn |
|---|---|
| Chromium-nickel | 26% Cr / 9% Ni · 25% Cr / 12% Ni · 25% Cr / 20% Ni · 15% Cr / 35% Ni |
Tell us the duty and we will confirm the grade against your specification.
Dibblee Industries Ltd.
Technical Data Sheet
Technical Specifications
| Parameter | Value |
|---|---|
| Material | Chromium alloy white cast iron, 12% Cr and higher |
