Standard Pillar Bollard with Round Base — K-2003

The classic quay pillar bollard, round base, nine sizes from 2 to 200 tonnes pull. Bolted down on 4 to 8 holding-down bolts from M12 to M72.

Before you specify a load

The rating below is the bollard's. It is not a substitute for a mooring analysis. Nominal bollard loads from BS 6349-1-2, PIANC 153B and EAU 2020 can be used directly for vessels up to about 20,000 tonnes loaded displacement; above that they are preliminary-design figures only. We supply the fitting — the mooring study and the holding-down design are your engineer's.

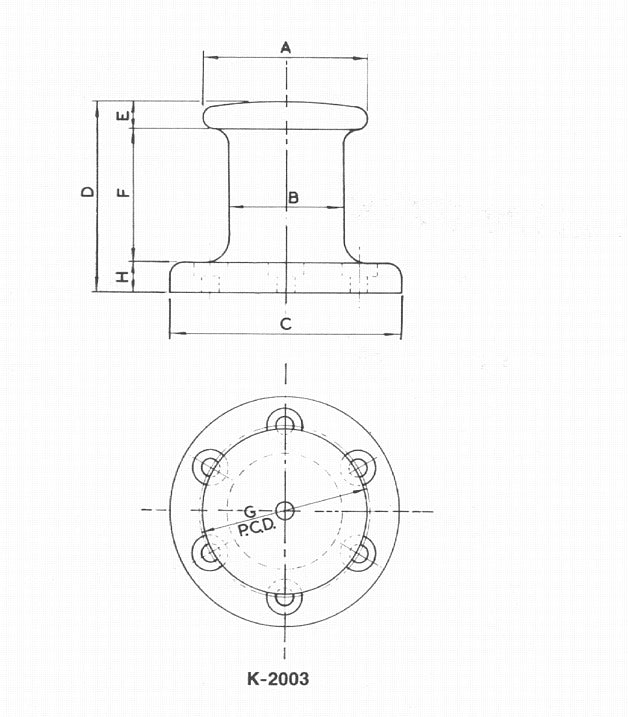

Dimensions and ratings

Part No. Size A B C D E F G H Bolts Pull (tonnes)
084-5848 2 tonne 150 100 200 190 25 135 140 30 5 × M12 2
084-5866 5 tonne 195 125 270 215 30 150 200 35 4 × M20 5
084-5884 10 tonne 240 160 320 275 40 195 230 40 5 × M24 10
084-5900 15 tonne 330 230 460 380 50 270 340 60 6 × M24 15
084-6008 30 tonne 330 230 460 380 50 270 340 60 6 × M36 30
084-6026 50 tonne 490 340 690 590 80 430 510 80 8 × M36 50
084-6044 75 tonne 630 450 900 800 100 600 680 100 8 × M48 75
084-6062 125 tonne 800 560 1060 850 130 600 800 120 8 × M56 125
084-6080 200 tonne 800 560 1060 850 130 600 800 120 8 × M72 200

All dimensions in millimetres.

Two pairs share a casting

Note that 084-5900 and 084-6008 are dimensionally identical (15 t and 30 t), as are 084-6062 and 084-6080 (125 t and 200 t). The difference is the holding-down bolts — M24 against M36, and M56 against M72. The rating follows the bolts and the foundation, not the bollard body, so the two are not interchangeable even though the drawing is the same.
