Safety Bollard — Shear Bolt Release

Safety Bollard — Shear Bolt Release

Size

Quoted on request. Price depends on the steel market and freight to your port. Tell us your port and specification and we will quote it delivered.

Contact Us For A Quote

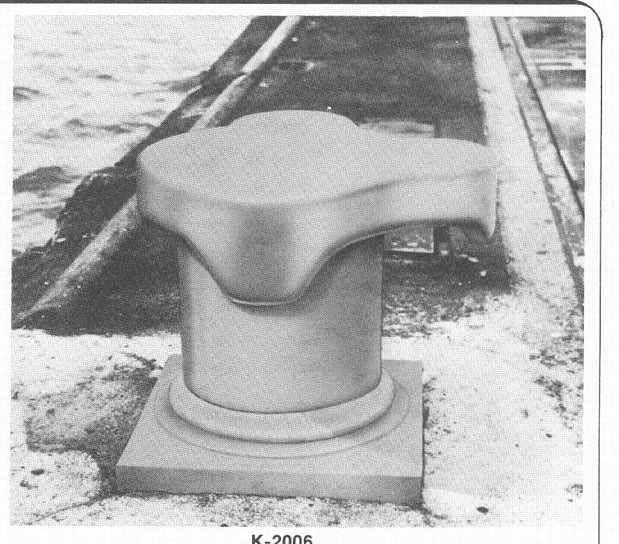

Safety Bollard — Shear Bolt Release (K-2006)

A bollard designed to fail in a chosen place. The head is held to its base by a shear bolt which lets the head come free when overloaded, protecting the jetty and leaving the fixed base undamaged. A precautionary retaining chain keeps the released head from going over the side. To return to service, only the shear bolt need be replaced.

Why this matters

Port design codes assume a deliberate order of failure: the mooring line renders out first, then the line parts, then the bollard or hook fails, and only last is the structure itself compromised. A bollard that is stronger than its foundation inverts that order and takes the quay edge with it. The safety bollard puts the intended failure into a single replaceable part.

Before you specify a load

The rating below is the bollard's. It is not a substitute for a mooring analysis. Nominal bollard loads from BS 6349-1-2, PIANC 153B and EAU 2020 can be used directly for vessels up to about 20,000 tonnes loaded displacement; above that they are preliminary-design figures only. We supply the fitting — the mooring study and the holding-down design are your engineer's.

Dimensions, loads and weights

Part No. Size A B C D E F G H K L M N P R S Nom. load Shear bolt Weight
084-6705 * Size 10 450 250 30 194 95 28 270 145 50 1000 45 NaN 20 100 25 100 kN (≈10.2 t) M24 105 kg
084-6687 Size 15 500 300 35 219 100 34 290 150 55 1000 50 NaN 20 100 35 150 kN (≈15.3 t) M30 140 kg
084-6669 Size 20 550 350 40 245 110 40 310 160 60 1000 60 NaN 20 100 40 200 kN (≈20.4 t) M36 185 kg
084-6641 Size 25 600 400 45 267 120 46 330 170 65 1000 65 NaN 25 100 45 250 kN (≈25.5 t) M42 223 kg
084-6623 Size 30 650 400 50 273 130 52 355 180 70 1000 75 NaN 25 125 50 300 kN (≈30.6 t) M48 290 kg
084-6605 Size 50 650 400 60 298 140 60 380 190 80 1000 90 NaN 25 125 60 500 kN (≈51 t) M56 355 kg
084-6507 Size 75 750 500 65 324 150 68 405 200 90 1000 95 NaN 25 125 65 750 kN (≈76.5 t) M64 485 kg
084-6482 Size 100 750 500 70 356 160 77 435 210 100 1000 105 NaN 25 125 75 1000 kN (≈102 t) M72 605 kg
084-6464 Size 125 900 600 80 406 175 85 470 225 110 1000 120 NaN 25 150 85 1250 kN (≈127.5 t) M80 930 kg
084-6446 Size 150 900 600 90 419 190 94 500 240 120 1000 135 NaN 25 150 95 1500 kN (≈153 t) M90 1030 kg

All dimensions in millimetres.

Ten sizes from 100 kN to 1500 kN nominal load (roughly 10 to 153 tonnes force). Note the size number is not the load: size × 10 = kN, so size 150 is 1500 kN. N is given as a rectangle, L is the retaining chain length. Shear bolts from M24 to M90.

* The part number for the size 10 bollard is not legible on our archive scan. It is shown as 084-6705 on the strength of the rest of the sequence — we will confirm it against the mill's current list when we quote.
