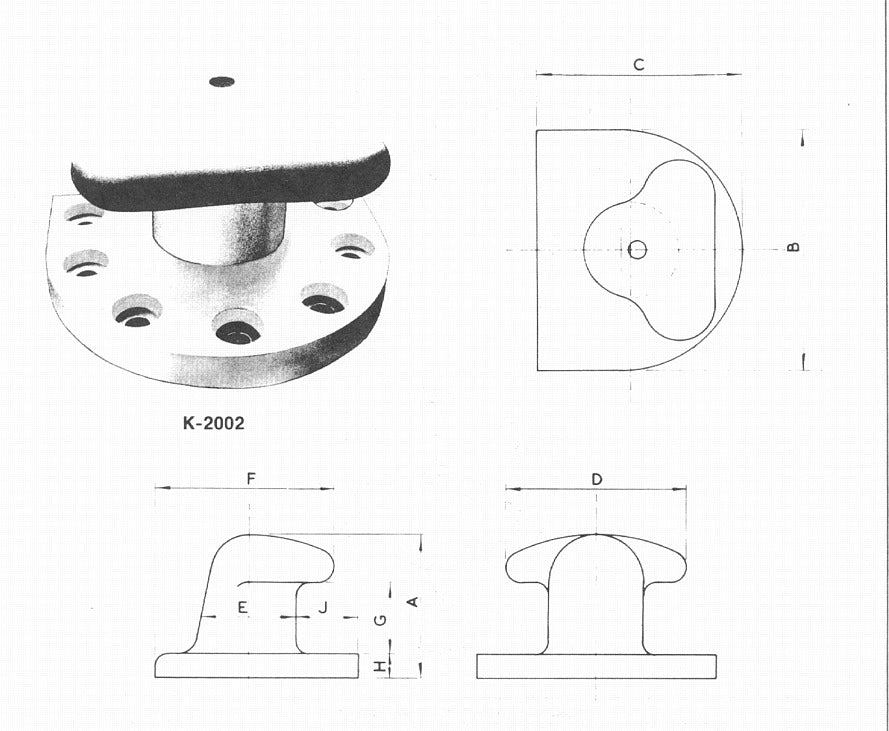

Tee Head Bollard with D Shaped Base — K-2002

Tee head quay bollard on a D shaped base, nine sizes from 10 to 200 tonnes pull. The tee head takes a line from any direction and holds an eye that cannot ride up off the horn.

Also available with square or rectangular base — tell us the foundation you have and we will quote the base to suit.

Before you specify a load

The rating below is the bollard's. It is not a substitute for a mooring analysis. Nominal bollard loads from BS 6349-1-2, PIANC 153B and EAU 2020 can be used directly for vessels up to about 20,000 tonnes loaded displacement; above that they are preliminary-design figures only. We supply the fitting — the mooring study and the holding-down design are your engineer's.

Dimensions and ratings

Part No. Size A B C D E F G H J Bolts Pull (tonnes)
084-6106 10 tonne 245 350 305 280 150 280 125 45 85 5 × M24 10
084-6204 15 tonne 290 480 410 360 190 360 145 50 125 5 × M30 15
084-6222 30 tonne 380 600 540 460 250 475 190 60 165 5 × M36 30
084-6240 50 tonne 480 800 650 600 300 570 245 80 205 5 × M52 50
084-6268 70 tonne 510 800 720 650 345 620 260 90 220 6 × M56 70
084-6286 100 tonne 600 1000 810 750 380 710 305 100 275 7 × M60 100
084-6302 125 tonne 635 1050 850 760 405 755 330 105 275 7 × M64 125
084-6400 150 tonne 665 1080 900 800 435 800 350 110 280 7 × M68 150
084-6428 200 tonne 700 1220 980 820 475 880 350 140 300 8 × M72 200

All dimensions in millimetres.
