Double Bitt Raked Bollard

Double Bitt Raked Bollard

Size

Quoted on request. Price depends on the steel market and freight to your port. Tell us your port and specification and we will quote it delivered.

Contact Us For A Quote

Double Bitt Raked Bollard — K-2005

Twin bitts raked outward on a common base, fourteen sizes from 80 mm to 510 mm bitt diameter, sized against chain cable from 18 mm to 89 mm. The rake keeps a line from riding up and off the bitt when the lead angle changes — which it does constantly with tide, draught and surge.

Before you specify a load

The rating below is the bollard's. It is not a substitute for a mooring analysis. Nominal bollard loads from BS 6349-1-2, PIANC 153B and EAU 2020 can be used directly for vessels up to about 20,000 tonnes loaded displacement; above that they are preliminary-design figures only. We supply the fitting — the mooring study and the holding-down design are your engineer's.

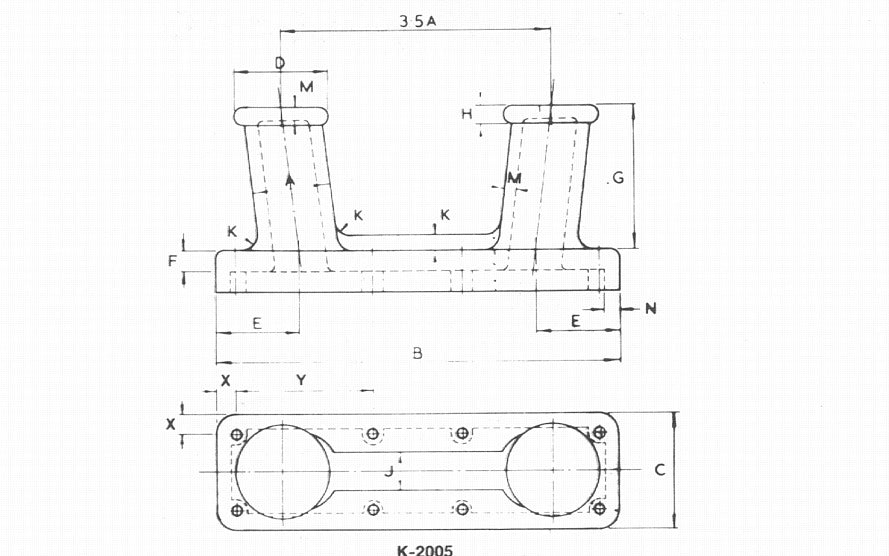

Dimensions

Part No. Size A B C D E F G H J K M N X Y Ø chain cable Bolts
084-3804 A 80 mm 80 445 130 120 90 22 140 22 30 15 13 20 25 — — 4 × M20
084-3822 18-21 mm chain 105 535 155 130 115 25 190 25 50 20 16 20 25 — 18-21 mm 4 × M20
084-3840 22-25 mm chain 130 665 190 160 140 32 240 32 65 25 19 25 32 — 22-25 mm 4 × M22
084-3868 27-30 mm chain 155 800 230 190 170 40 285 40 75 30 25 30 40 265 27-30 mm 6 × M22
084-3886 32-35 mm chain 180 940 265 225 200 45 335 45 90 35 27 35 45 310 32-35 mm 6 × M22
084-3902 37-40 mm chain 205 1065 305 255 230 50 380 50 100 40 30 40 50 355 37-40 mm 6 × M24
084-4402 41-45 mm chain 230 1195 345 290 255 57 430 57 115 45 35 40 57 400 41-45 mm 6 × M24
084-4420 46-49 mm chain 255 1335 380 320 285 65 475 65 125 50 38 45 65 445 46-49 mm 8 × M27
084-4448 50-54 mm chain 280 1475 420 350 315 70 525 70 140 55 41 50 70 490 50-54 mm 8 × M27
084-4466 55-62 mm chain 305 1650 460 380 345 75 575 75 155 60 46 55 75 535 55-62 mm 8 × M33
084-4484 64-70 mm chain 360 1920 535 450 400 90 670 90 180 70 54 65 90 625 64-70 mm 10 × M36
084-4509 71-79 mm chain 410 2135 610 510 455 100 765 100 205 80 60 75 100 710 71-79 mm 10 × M39
084-4607 80-89 mm chain 460 2400 685 575 515 115 845 115 230 90 67 85 115 800 80-89 mm 12 × M42
084-4625 A 510 mm 510 2440 760 640 575 150 915 130 255 100 73 95 125 900 — 12 × M45

All dimensions in millimetres.

Dimension N is the rake offset and is the only dimension that differs from the straight version.

Same family as the straight bollard

Every dimension A through M is identical to the straight bollard (K-2004) size for size. If you have a straight bollard's footprint, the raked version drops onto the same bolt pattern.

View full details
