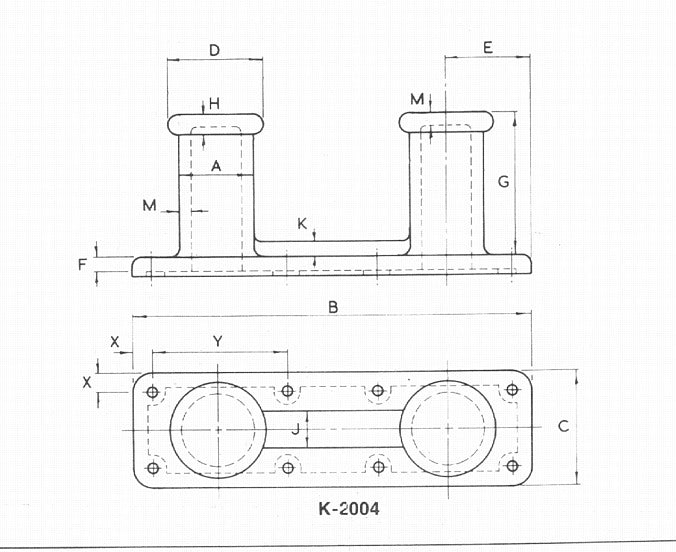

Double Bitt Straight Bollard — K-2004

Twin vertical bitts on a common base, fourteen sizes from 80 mm to 510 mm bitt diameter, sized against chain cable from 18 mm to 89 mm. J and K are the web dimensions; X and Y are the bolt spacings.

Before you specify a load

The rating below is the bollard's. It is not a substitute for a mooring analysis. Nominal bollard loads from BS 6349-1-2, PIANC 153B and EAU 2020 can be used directly for vessels up to about 20,000 tonnes loaded displacement; above that they are preliminary-design figures only. We supply the fitting — the mooring study and the holding-down design are your engineer's.

Dimensions

Part No. Size A B C D E F G H J K M X Y Ø chain cable Bolts
084-5401 A 80 mm 80 445 130 120 90 22 140 22 30 15 13 25 — — 4 × M20
084-5429 18-21 mm chain 105 535 155 130 115 25 190 25 50 20 16 25 — 18-21 mm 4 × M20
084-5447 22-25 mm chain 130 665 190 160 140 32 240 32 65 25 19 32 — 22-25 mm 4 × M22
084-5465 27-30 mm chain 155 800 230 190 170 40 285 40 75 30 25 40 265 27-30 mm 6 × M22
084-5483 32-35 mm chain 180 940 265 225 200 45 335 45 90 35 27 45 310 32-35 mm 6 × M22
084-5508 37-40 mm chain 205 1065 305 255 230 50 380 50 100 40 30 50 355 37-40 mm 6 × M24
084-5606 41-45 mm chain 230 1195 345 290 255 57 430 57 115 45 35 57 400 41-45 mm 6 × M24
084-5624 46-49 mm chain 255 1335 380 320 285 65 475 65 125 50 38 65 445 46-49 mm 8 × M27
084-5642 50-54 mm chain 280 1475 420 350 315 70 525 70 140 55 41 70 490 50-54 mm 8 × M27
084-5660 55-62 mm chain 305 1650 460 380 345 75 575 75 155 60 46 75 535 55-62 mm 8 × M33
084-5688 64-70 mm chain 360 1920 535 450 400 90 670 90 180 70 54 90 625 64-70 mm 10 × M36
084-5704 71-79 mm chain 410 2135 610 510 455 100 765 100 205 80 60 100 710 71-79 mm 10 × M39
084-5802 80-89 mm chain 460 2400 685 575 515 115 845 115 230 90 67 115 800 80-89 mm 12 × M42
084-5820 A 510 mm 510 2440 760 640 575 150 915 130 255 100 73 125 900 — 12 × M45

All dimensions in millimetres.

Straight or raked?

This is the straight version. The raked version (K-2005) is the same casting family to the same dimensions, with the bitts inclined outward so a line led from a rising or falling deck is less likely to jump the bitt. Where tide range or freeboard change is significant, the raked bollard is usually the right choice.

Standards

ISO 3913 — Shipbuilding, welded steel bollards covered this family: material and principal dimensions for nominal sizes 100 to 800, with welding detail left to the maker provided the bollard passed test. The standard has since been withdrawn.
